3·2·1® Series II DVD home entertainment system | Removing and replacing speaker grilles

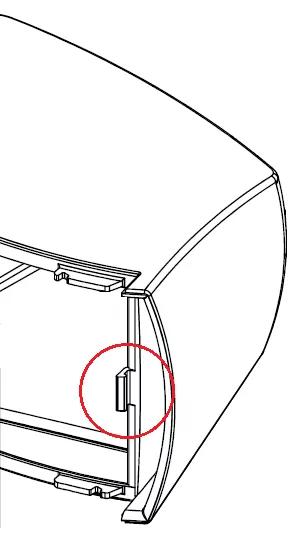

The speaker grille is held in place by two tabs. To remove the grille, follow these steps:

  1. Place the speaker array on its back
  2. Use your thumb to press down on the grille at the center of the curve near the side (area indicated below)


    This will cause the edge of the grille to bow outward slightly so that the grille frame clears the tab on the speaker enclosure

  • Use a flat tip screwdriver to pry the end of the grille off of the speaker enclosure
  • Repeat this at the other end of the grille
To replace the grille:
  1. Align the grille so that the Bose logo is facing the same direction as the arrows on the front of the array enclosure
  2. Press the grille in place. It should latch to tab on the speaker enclosure at each end
